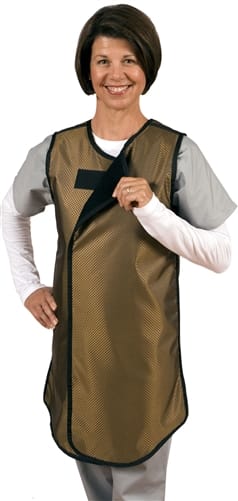

Apron X-Ray
Wrap Around

Wrap-Around Male or Female X-Ray Aprons are designed for full front and/or back radiation protection that uses a wrap-around style with side hook and loop closures for a secure, adjustable fit. Lighter Weight Protection Options are recommended. Optional BX Belt (model BX) provides extra back support and can be ordered separately.

Protection: 0.5mm Pb Equivalency

Core Material: Regular Lead, Lightweight Lead, Lead Free

Size: Small, Medium, Large, X-Large

Closure: Hook & Loop

Color: Available in a selection of solid color nylon, vinyl and diamond ripstop fabric

Shoulder pads included

Your Item is Custom Made. Please Choose your core material, size and color carefully as this item is non-returnable. Custom items can not be modified or cancelled once manufacturing begins.

Shielding Apparel and Apparel Accessory products are warrantied from the initial date of purchase for defects in material and workmanship - Regular Lead and Lightweight Lead products for two (2) years and Lead Free products for (1) year.

Proudly made in the USA and sold by a Veteran Owned Small Business.

Regular Lead Protection: 0.5mm Pb Equivalency Front/1.0mm Overlap/0.3mm Back.
Lightweight and Lead Free Protection: 0.5mm Pb Equivalency Front/1.0 mm Overlap, 0.25 Back
Lightweight and Lead Free core materials are recommended for this garment due to the weight.

Regular Lead - 100% Lead is the most economical and recyclable. Best for short procedures as this is the heaviest in weight. 0.5mm Pb protection averages 97% attenuation over 80, 100, 120 KVP.
Lightweight Lead - Lead-Tin mix is 10-15% lighter in weight than regular lead and recyclable. Mid-priced and recommended for medium length procedures. 0.5mm Pb protection averages 96.8% attenuation over 80, 100, 120 KVP.
Lead Free - Antimony-Bismuth mix 20-25% lighter in weight than regular lead and is the most environmentally friendly. This is the lightest in weight and the most comfortable. 0.5mm Pb protection averages 96.6% attenuation over 80, 100, 120 KVP.


Full Protective Apron sizing is based on actual body measurements. Length should be measured from the sternal notch down. Full Protection Aprons should guard to just above or below the knee depending on your preference.

Male Sizing

Size	Fits Chest	Waist	Hips Up To	Approximate Apron Weight	(Varies by Apron Length)
S	35" - 38"	28" - 32"	40"	Reg Lead: 13.5 - 17 lbs	Ltwt Lead: 10.5 - 13.5 lbs	Lead Free: 8 - 10.5 lbs
M	39" - 42"	32" - 36"	44"	Reg Lead: 15 - 18.5 lbs	Ltwt Lead: 12 - 15 lbs	Lead Free: 9 - 11 lbs
L	43" - 46"	36" - 40"	48"	Reg Lead: 15.5 - 20 lbs	Ltwt Lead: 12.5 - 16 lbs	Lead Free: 9.5 - 12 lbs
XL	47" - 50"	40" - 44"	52"	Reg Lead: 17 - 21.5 lbs	Ltwt Lead: 13.5 - 17 lbs	Lead Free: 10 - 13 lbs
2X	51" - 54"	44" - 48"	56"	Reg Lead: 18 - 23 lbs	Ltwt Lead: 14.5 - 18.5 lbs	Lead Free: 11 - 14 lbs

Female Sizing

Size	Fits Chest	Waist	Hips Up To	Approximate Apron Weight	(Varies by Apron Length)
S	34" - 35"	26" - 30"	38"	Reg Lead: 13.5 - 17 lbs	Ltwt Lead: 10.5 - 13.5 lbs	Lead Free: 8 - 10.5 lbs
M	36" - 37"	30" - 34"	40"	Reg Lead: 15 - 18.5 lbs	Ltwt Lead: 12 - 15 lbs	Lead Free: 9 - 11 lbs
L	38" - 40"	34" - 38"	43"	Reg Lead: 15.5 - 20 lbs	Ltwt Lead: 12.5 - 16 lbs	Lead Free: 9.5 - 12 lbs
XL	41" - 44"	38" - 42"	47"	Reg Lead: 17 - 21.5 lbs	Ltwt Lead: 13.5 - 17 lbs	Lead Free: 10 - 13 lbs
2X	45" - 48"	42" - 46"	51"	Reg Lead: 18 - 23 lbs	Ltwt Lead: 14.5 - 18.5 lbs	Lead Free: 11 - 14 lbs

Apron Length

Size	Length	Recommended Height
XShort (XS)	30"	4'11" - 5'3"
Short (S)	32"	5'3" - 5'5"
Regular (R)	34"	5'5" - 5'8"
Tall (T)	36"	5'8" - 5'11"
XTall (XT)	38"	5'11" - 6'2"

Measurement Guide Click Here
