Apron X-Ray
Back Relief
BRX Belt

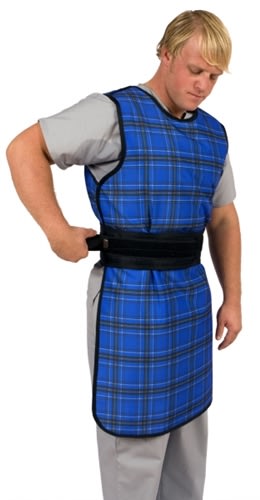

Back Relief X-Ray Aprons are designed to improve comfort and reduce strain on user shoulders and back. It achieves this by transferring the apron weight from the shoulders to the hips with the help of a built-in, 6" wide, padded belt, often with a lumbar support feature and a quick-release buckle. Features BRX brace belt with unique pulley system to help with lower back stress or strain by providing support and comfort. The pulley system cinches the belt. The system and cords are backed by a lifetime warranty. The BRX belt can be adjusted for various body positions and is comfortable when worn outside our X-ray apparel (may also be used with other apron styles) This model comes standard with BRX Belt which may be ordered to fit various sized individuals. Please indicate belt size when ordering.

Protection: 0.5mm Pb equivalency

Core Material: Regular Lead, Lightweight Lead, Lead Free

Size: Small, Medium, Large, X-Large

Closure: Buckle

Color: Available in a selection of solid color nylon, vinyl and diamond ripstop fabric

Shoulder pads included

Your Item is Custom Made. Please Choose your core material, size and color carefully as this item is non-returnable. Custom items can not be modified or cancelled once manufacturing begins.

Shielding Apparel and Apparel Accessory products are warrantied from the initial date of purchase for defects in material and workmanship - Regular Lead and Lightweight Lead products for two (2) years and Lead Free products for (1) year.

Proudly made in the USA and sold by a Veteran Owned Small Business.

Our protective garments and shields are available in three core materials for you to choose the option that best suits your needs. Whether you are looking to maximize your budget or reduce strain on your shoulders and back, we have you covered from the most economical to the most comfortable and environmentally friendly.

Regular Lead - 100% Lead is the most economical and recyclable. Best for short procedures as this is the heaviest in weight. 0.5mm Pb protection averages 97% attenuation over 80, 100, 120 KVP.
Lightweight Lead - Lead-Tin mix is 10-15% lighter in weight than regular lead and recyclable. Mid-priced and recommended for medium length procedures. 0.5mm Pb protection averages 96.8% attenuation over 80, 100, 120 KVP.
Lead Free - Antimony-Bismuth mix 20-25% lighter in weight than regular lead and is the most environmentally friendly. This is the lightest in weight and the most comfortable. 0.5mm Pb protection averages 96.6% attenuation over 80, 100, 120 KVP.

Front Protective Apron sizing is unisex and based on the actual sizes of the protective material. When measuring for a Front Protection Apron, measure from one side of the widest part of your body, around to the other side - the actual distance you want protected. Length should be measured from the sternal notch down. Front Protection Aprons should guard to just above or below the knee depending on your preference.

Size	Apron Width	Fits Chest	Approximate Apron Weight	(Varies by Apron Length)
S	20"	34" - 38"	Reg Lead: 8 - 10 lbs	Ltwt Lead: 6.5 - 8 lbs	Lead Free: 5.5 - 7 lbs
M	22"	38" - 42"	Reg Lead: 8.5 - 11 lbs	Ltwt Lead: 7 - 9 lbs	Lead Free: 6 - 7.5 lbs
L	24"	42" - 46"	Reg Lead: 9 - 12 lbs	Ltwt Lead: 8 - 10 lbs	Lead Free: 6.5 - 8 lbs
XL	27"	47" - 52"	Reg Lead: 10.5 - 13 lbs	Ltwt Lead: 8.5 - 11 lbs	Lead Free: 7 - 9 lbs

Belt SizeFits WaistSmall 25" - 30" (63.5cm - 76.2cm)Medium 30" - 35" (76.2cm - 88.9cm)Large 35" - 40" (88.9cm - 101.6cm)X-Large 40" - 45" (101.6cm - 114.3cm)2XL 45" - 50" (114.3cm - 127cm) 3XL 50" - 55" (127cm - 139.7cm)
Apron Length

Size	Length	Recommended Height
XShort (XS)	30"	4'11" - 5'3"
Short (S)	32"	5'3" - 5'5"
Regular (R)	34"	5'5" - 5'8"
Tall (T)	36"	5'8" - 5'11"
XTall (XT)	38"	5'11" - 6'2"

Measurement Guide Click Here

Have a Question: Call us at (800) 225-4805 or Email us
